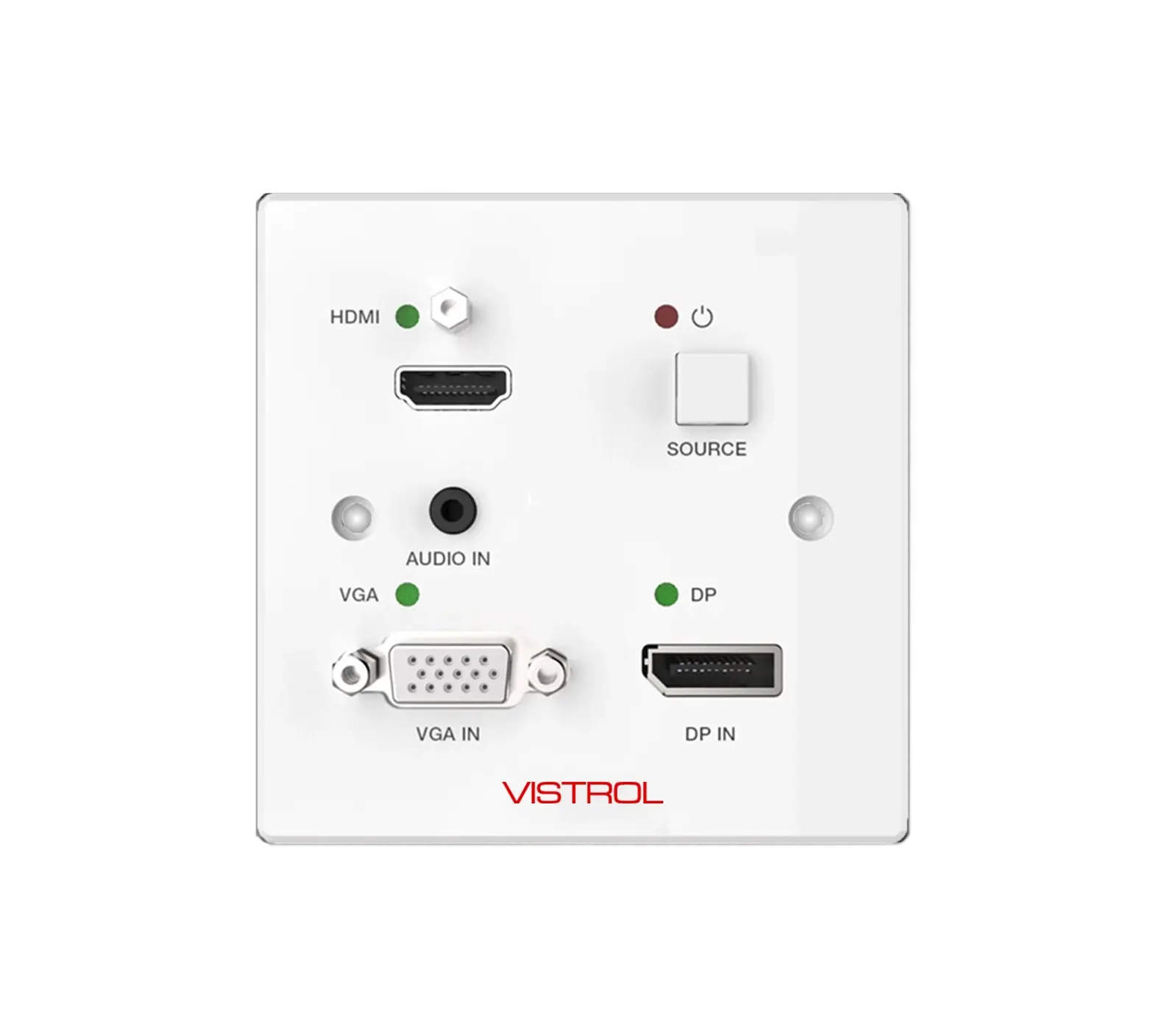

iMX3 Multi-Input HDBaseT 70M Transmitter (Tx)
The iMX3-TG-HDBT-WMI70Tx wall plate supports one HDMI input, one DP input and one VGA with audio input within a standard medium 86mm×86mm wall box. The HDBT port over a single Cat6/6a cable extends distance up to 70m with 1080p60Hz and up to 40m with 4K60 YCbCr 4:2:0. The resolution up to 4K60Hz YCbCr 4:2:0 for HDMI/DP ports and up to 1920x1200@60Hz for VGA port. The product supports manual and automatic switch mode and supports 24V POC function. Built-in two-way RS-232.
Model Name iMX3-TG-HDBT-WMI70Tx HDMI Video Resolution Up to 4K60Hz YCbCr 4:2:0 VGA Video Resolution Up to 1920x1200@60Hz HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 HDMI / DP Video Bandwidth 10.2Gbps Color Space RGB, YUV4:4:4, YUV 4:2:2 Color Depth 8-bit(4K2K@30Hz) ESD Protection ±8kV (air-gap discharge) & ±4kV (contact discharge) HDMI/DP Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD VGA Audio Formats LPCM2.0 /48KHz Input 1x HDMI Type A (19-pin female)
1x VGA (15-pin female)
1x DP (Full size female)
1x AUDIO IN (3.5mm Stereo Mini-jack)Outpur 1x HDBT Out (RJ45) Control 1x RS-232 (Phoenix jack) Dimension ((WxDxH mm) 86mm x 86mm x 41mm Weight 205g Panel Material Front: Aluminum Enclosure
Rear: Metal EnclosurePanel Colour Front: White
Rear: BlackPower Supply DC 24V/1A or POC Power Consumption 5W (Max) Operating Temperature 32 - 104°F / 0 - 40°C Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation)
